Damper Installation

Slide Damper Installation Instructions

To maintain a minimalist appearance, kül offers a visually clean, easily accessible residential slide damper as an accessory to our linear grilles to allow for air flow control where necessary. Available for our standard 10x3, 10x4 and 12x4 grille sizes, these dampers are stock items and are available for quick ship.

Here’s our step by step instructions for installing your slide damper:

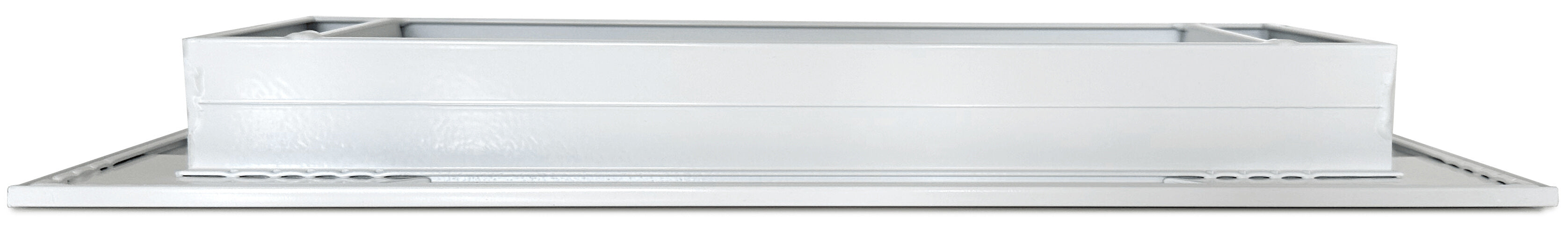

Step one: Place your kul grilles’ vent cover face down on a flat surface.

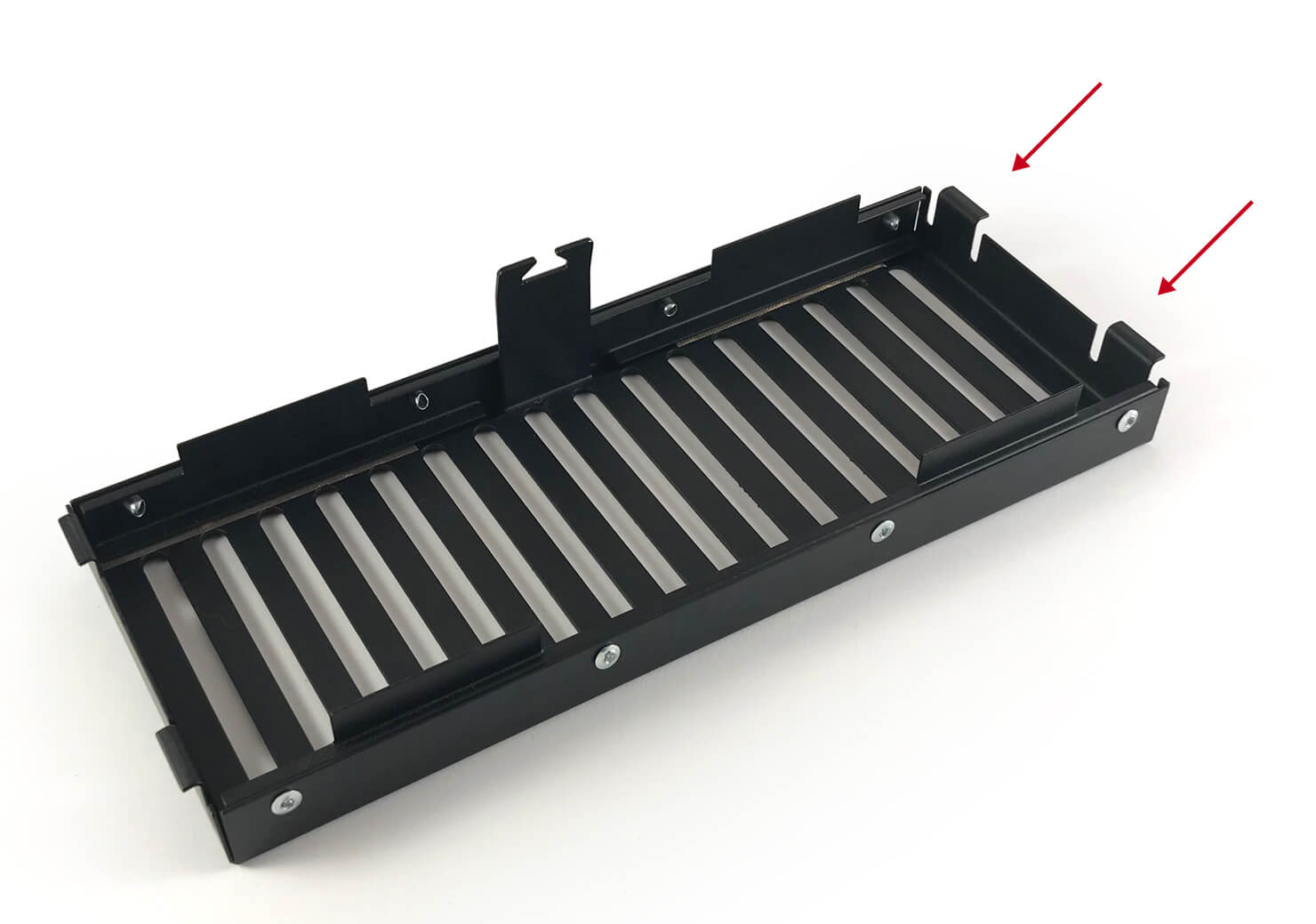

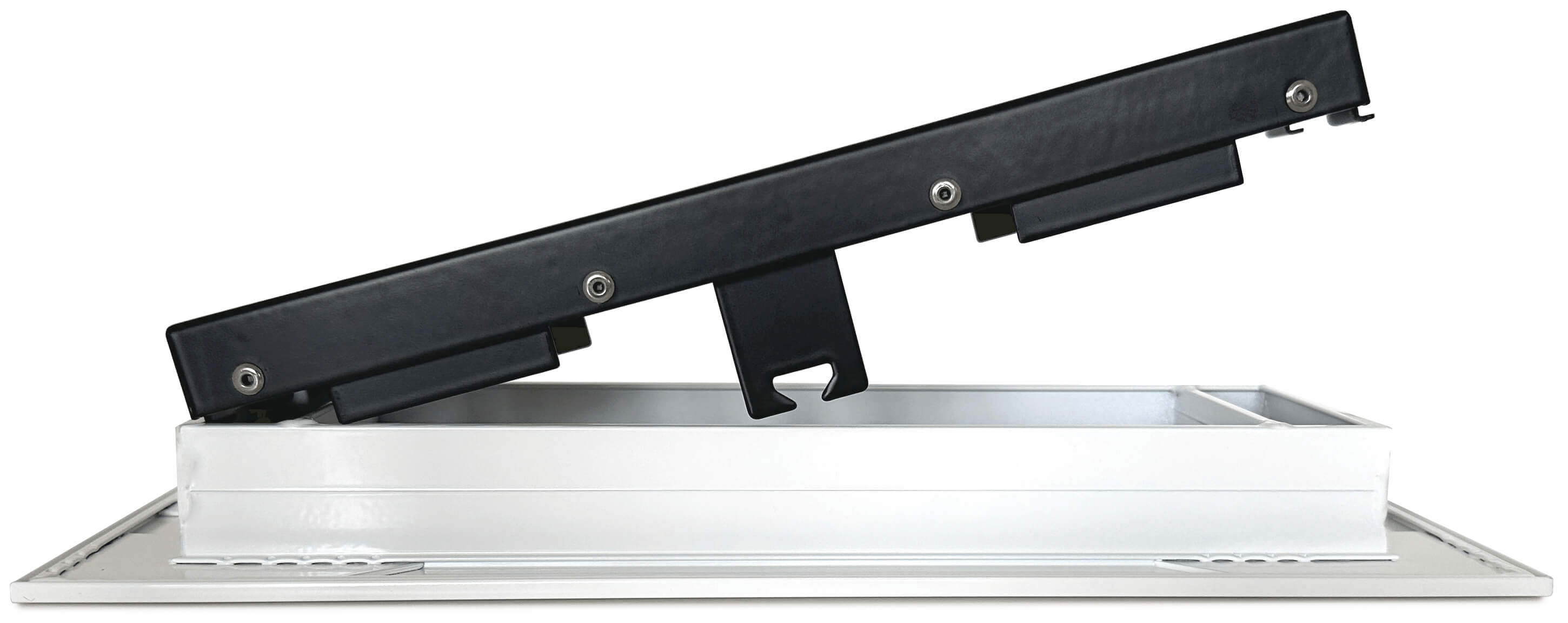

Step two: Insert the tabs under the stack of the vent cover on one end, and press the damper down on the opposite side until you hear a click.

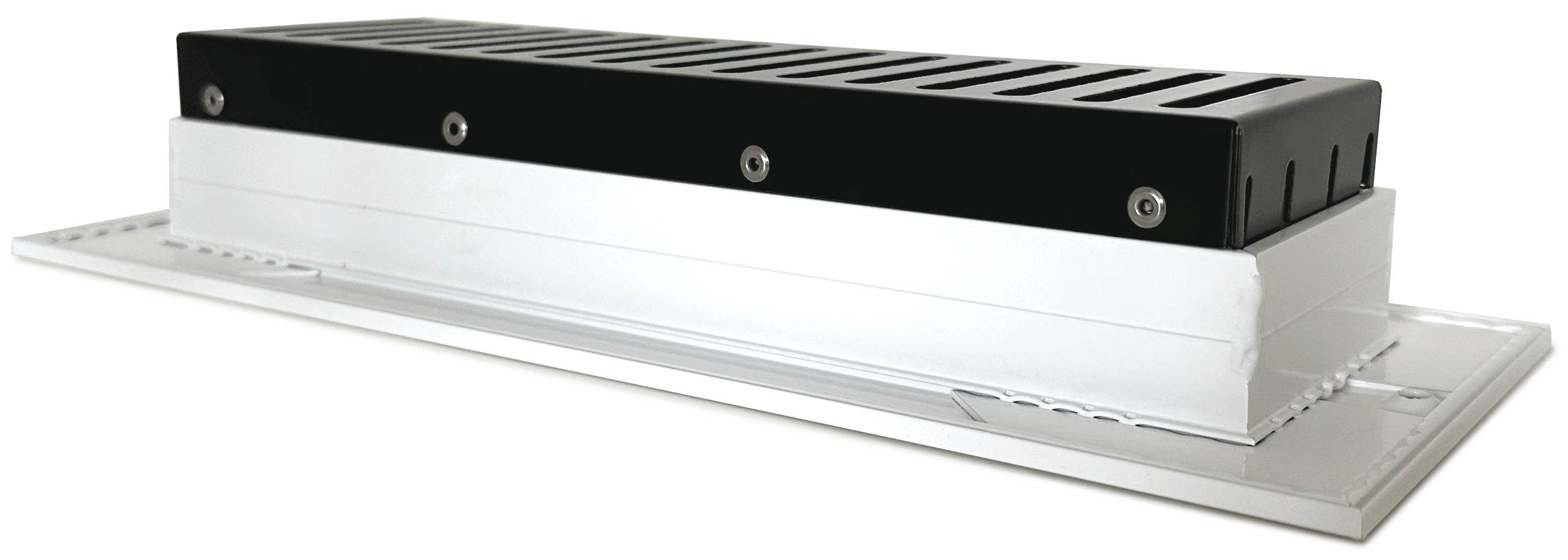

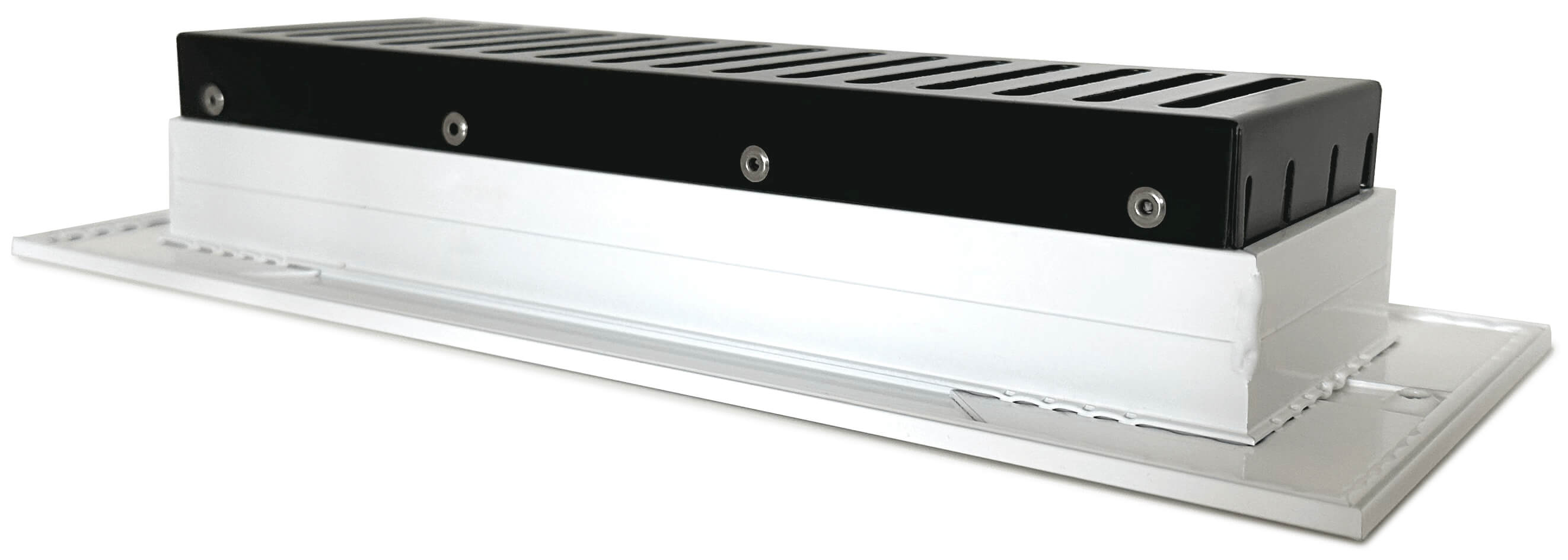

Step three: Your installed slide damper should look like the image below.

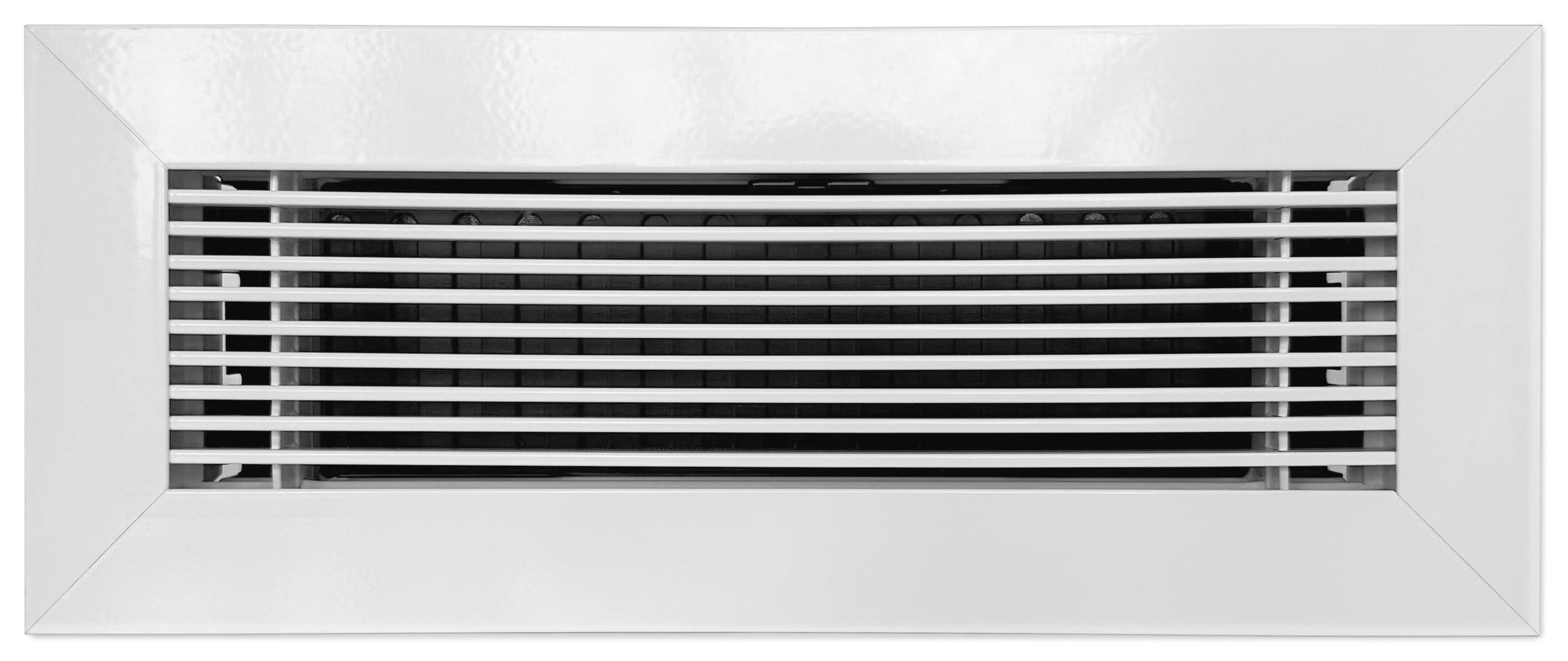

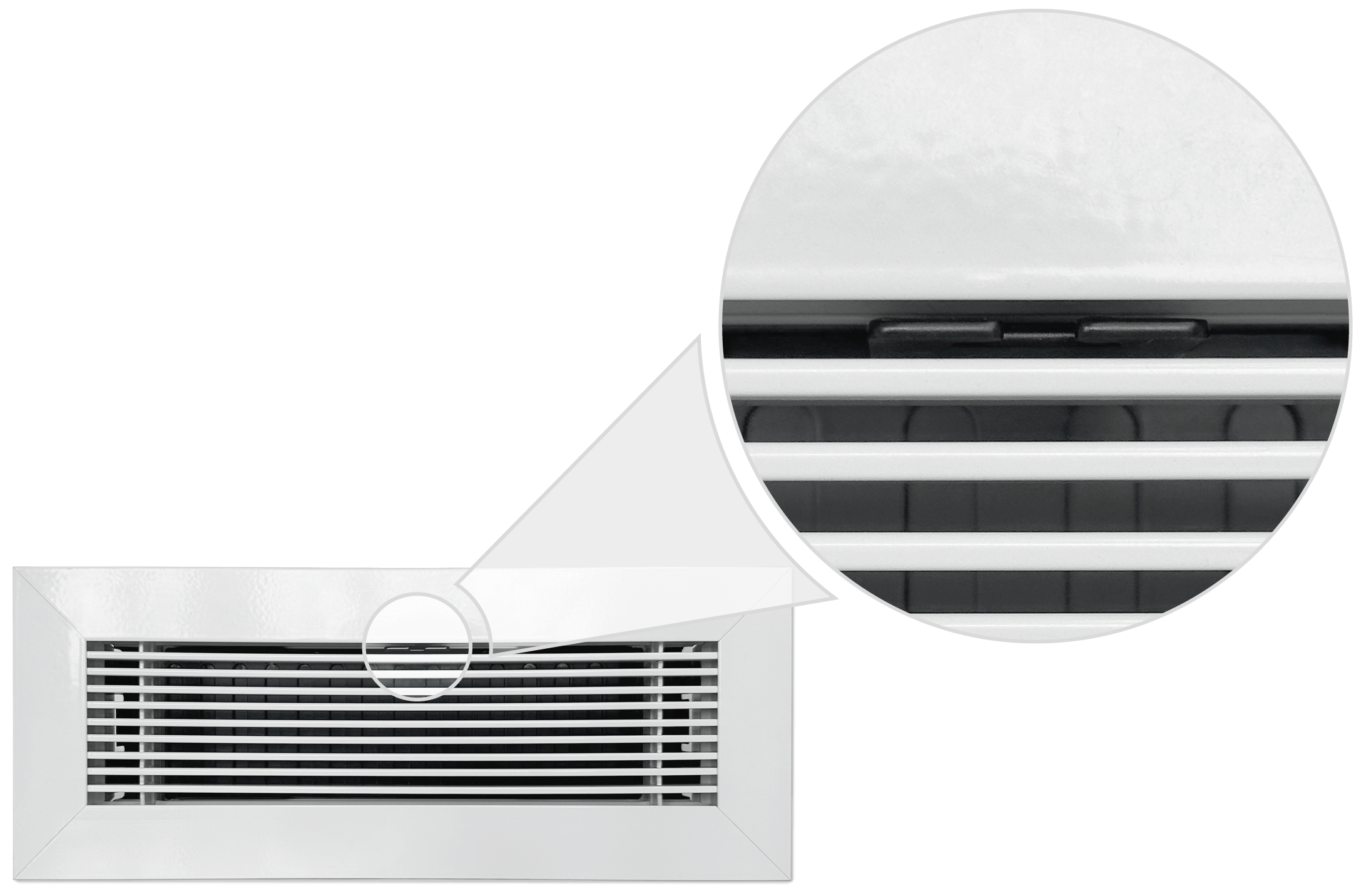

The sliding operator is conveniently positioned on the face of the grille and has been designed to seamlessly blend in with the core bars. This not only enhances the overall aesthetic appeal but also allows for unobstructed foot traffic.

We do not ship our standard vent covers with dampers. (Maximum airflow is important, so we only provide dampers on request for rooms where airflow control is required).

To order dampers with your grilles or for more information please contact us at support@kulgrilles.com or 1.866.613.7771

Slide Damper Video Tutorial

Opposable Blade Damper Information

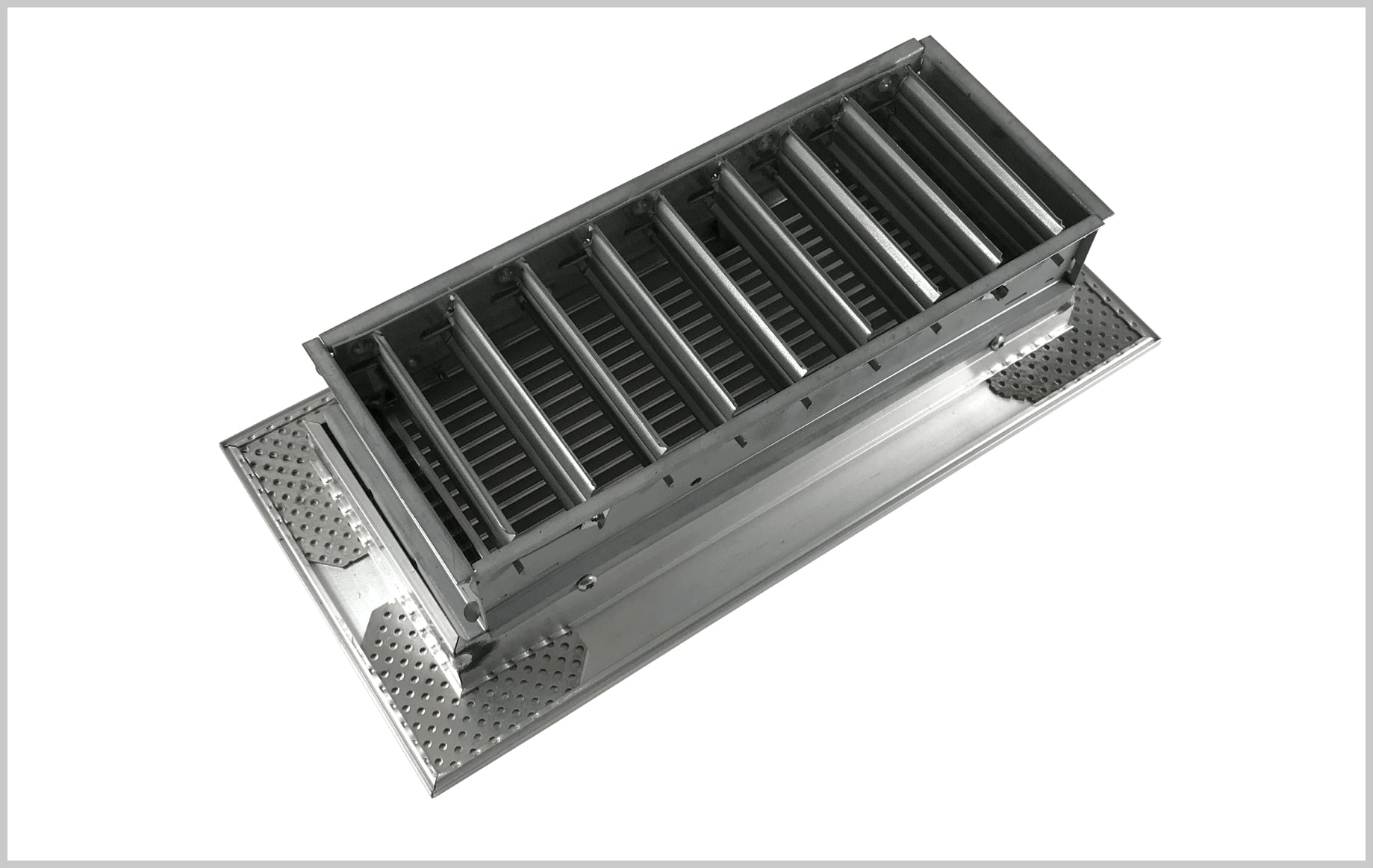

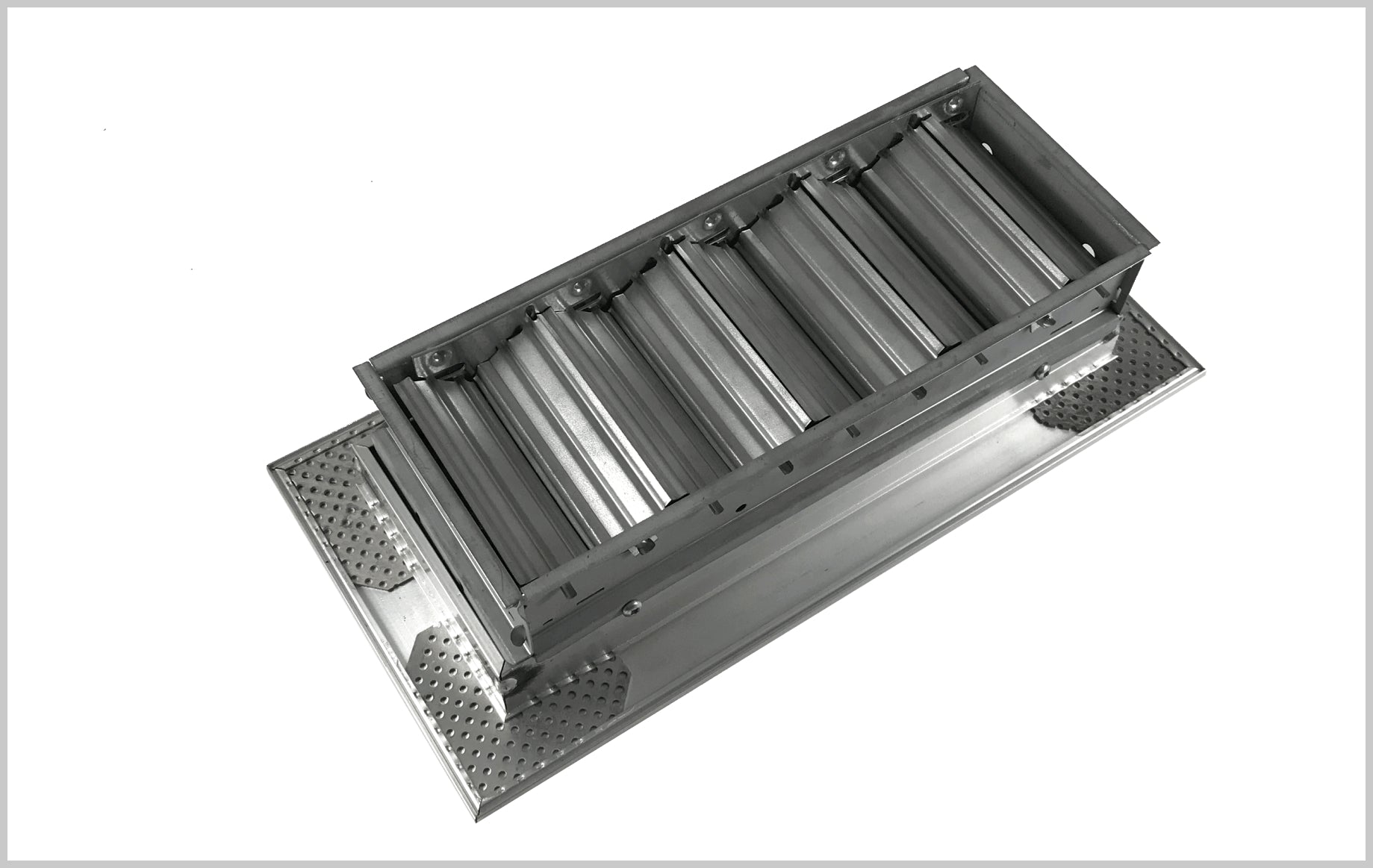

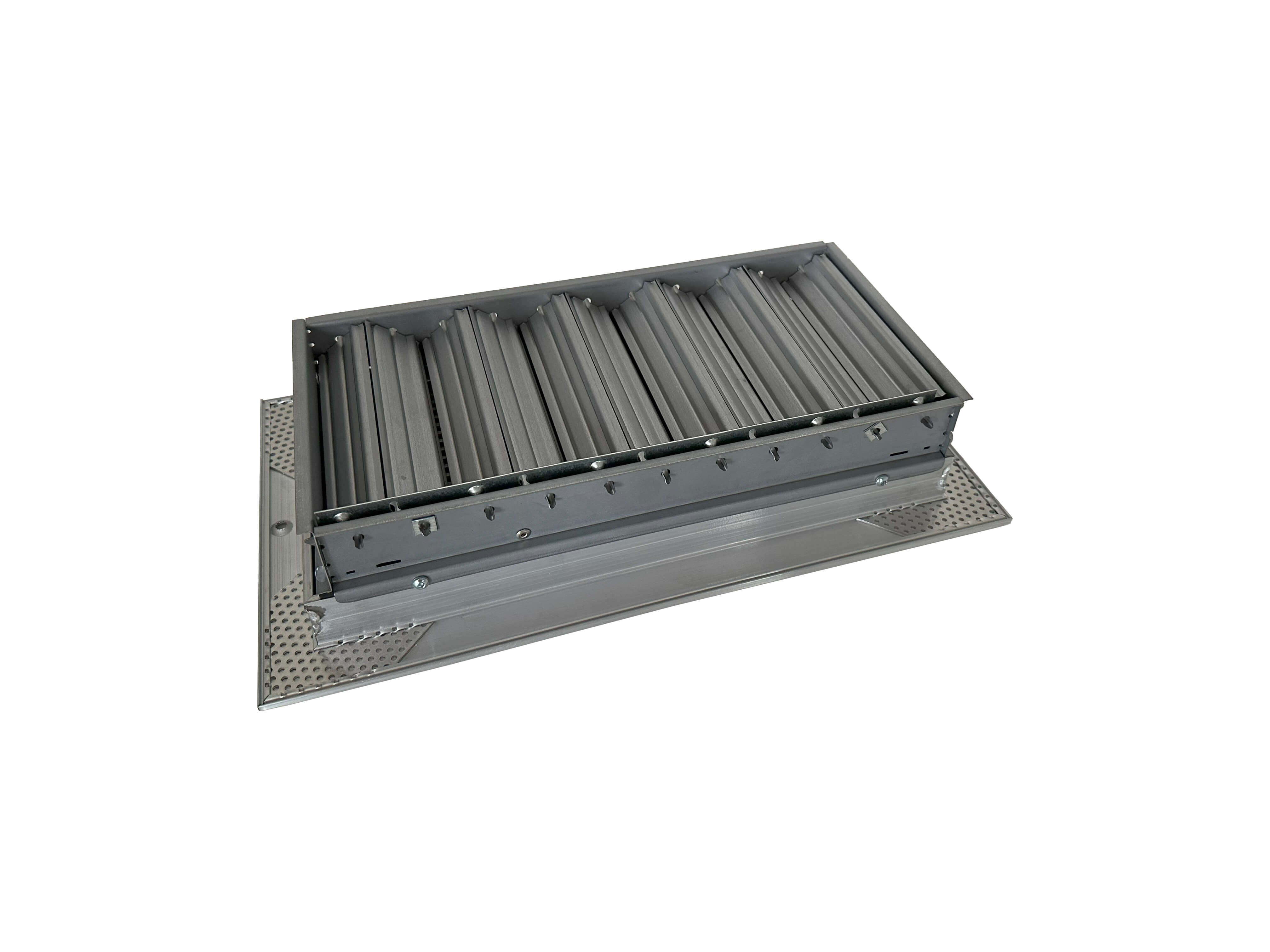

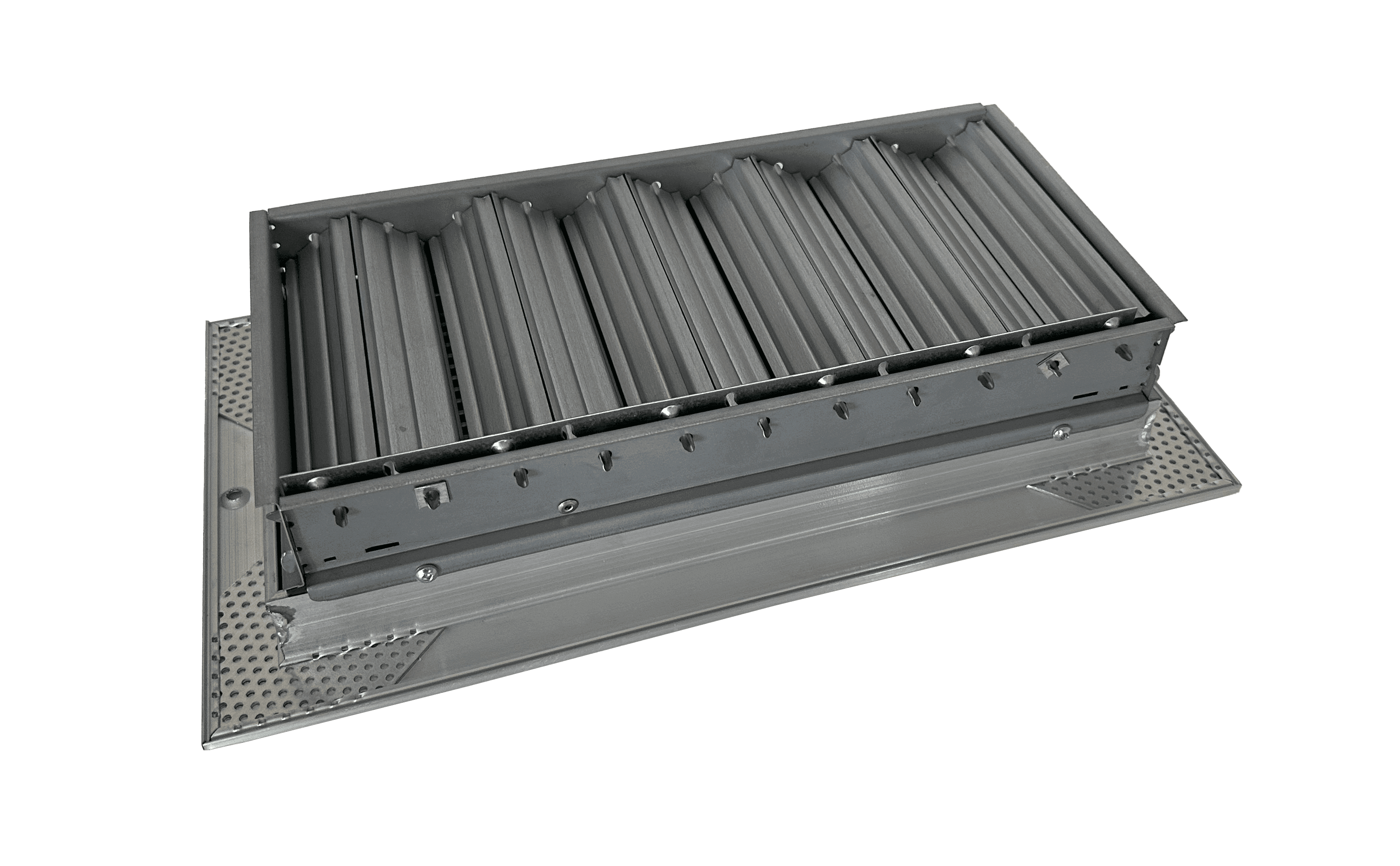

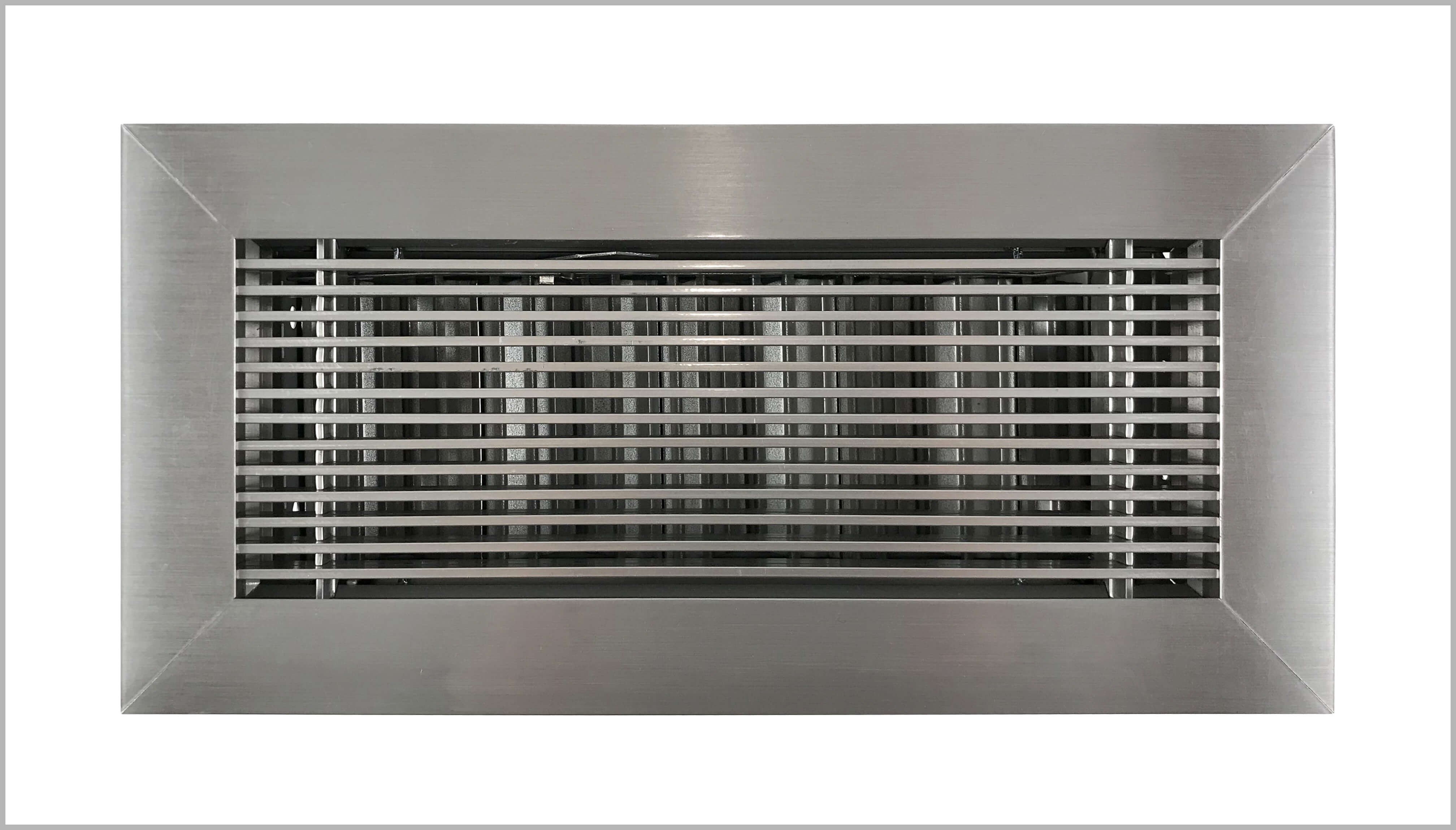

kül offers a quality coated steel construction opposed blade damper as a custom accessory to our linear grilles. The gang operated damper blades move simultaneously in opposite directions for smooth volume control from fully open to fully closed and can be manufactured for almost any size of kül grille.

Grilles are custom manufactured together with the dampers, as the grilles are undersized ¼” to ensure a proper fit. Lead times & custom setup fees will apply.

Dampers are raw steel regardless of grille finish.

They can be adjusted from the front with a very small flat head screwdriver but are best adjusted from behind the face of the grille. They require at least 3” of clearance behind the grille.


We do not ship our standard vent covers with dampers. (Maximum airflow is important, so we only provide dampers on request for rooms where airflow control is required).

To order dampers with your grilles or for more information please contact us at support@kulgrilles.com or 1.866.613.7771

Opposable Blade Damper Adjustments Video Tutorial

.

*Please note: Dampers will further restrict airflow so we do recommend ordering grilles with dampers only where absolutely necessary.
