Width Limitations For Vent Covers

Width Limitations For Floor Vent Covers

Our grilles are made of high-quality, extruded aluminum.

While we are able to make almost any size of custom grille, we do have some limitations for floor and wall applications for product stability and safety reasons.

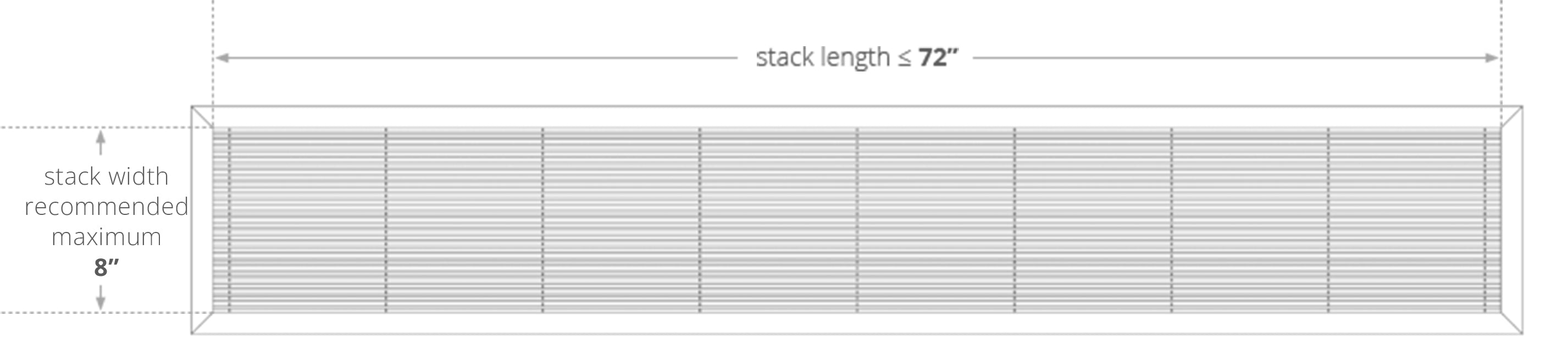

For floor grilles: we limit our floor grilles to 72 inches long for one single piece and 8 inches wide to maintain stability in the construction of the product.

Maximum Recommended Width for Floor Vent Covers Image

Tap the image to zoom in

Notes:

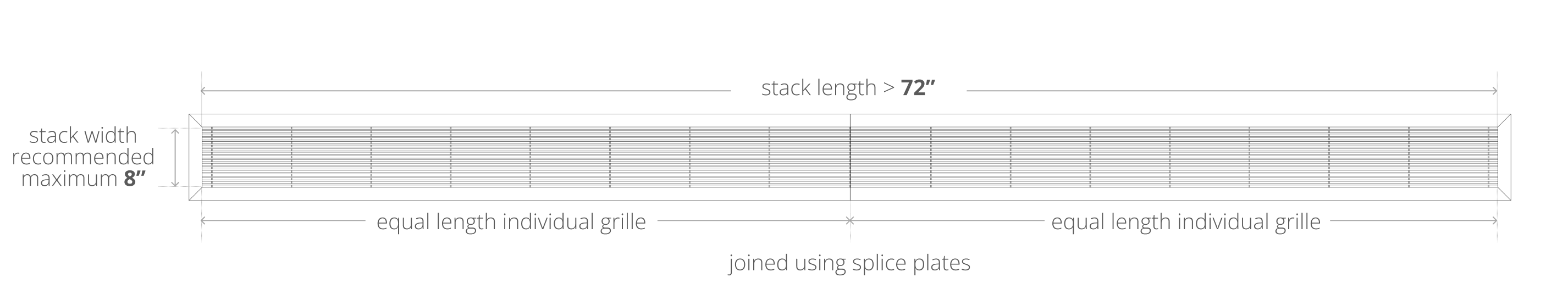

  • We can make Floor vent covers over 72 inches but they will be spliced into equal lengths (depending on total length) with unmitered ends - creating a continuous appearance, connected by steel splice plates.

  • Two splice plates are required per joint.

  • Tap the image to zoom in

  • Floor vent cover measurements listed refers to the hole opening of the duct.

  • Stack dimensions have a 1/4 inch clearance and a depth of 1 inch recessing into the hole opening.

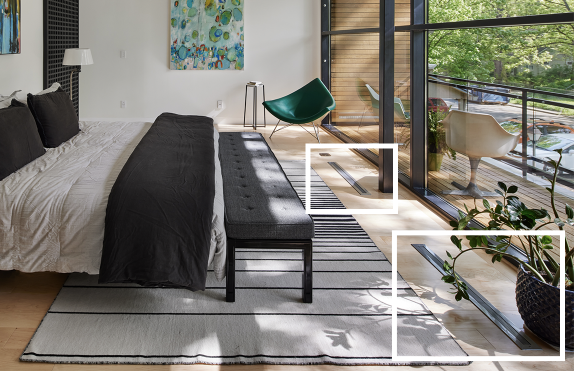

Floor Vent Cover Black Monolith Highlighted Grilles in Modern Bedroom by kul grilles

Download our multi-section grille application technical specifications here.


Width Limitations for Ceiling Vent Covers

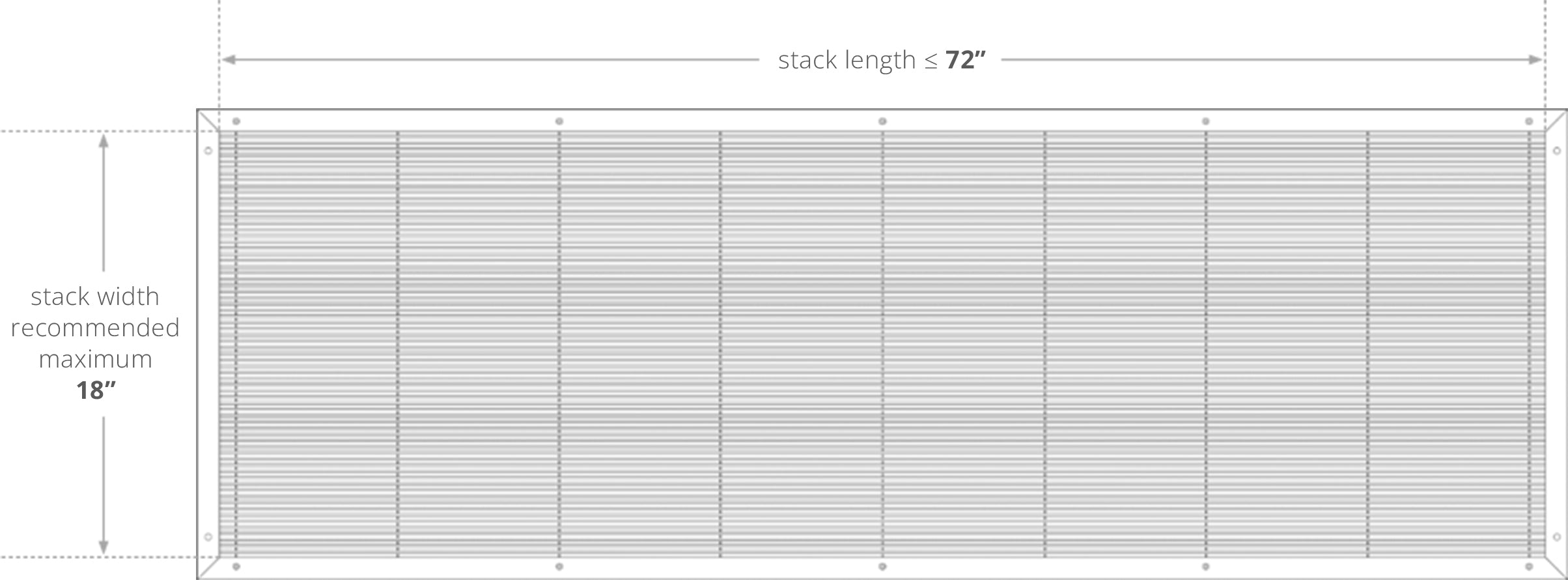

Ceiling and sidewall application (which require mounting holes and screws to secure the grilles to the wall or ceiling) can be built up to 72 inches long (in one continuous piece) and up to 18 inches wide.

We can manufacture over 72 inches length. But would require splicing the grilles together (as per the notes section below).

Ceiling Vent Cover Recommended Width By kul grilles

Tap the image to zoom in

Countersunk screw holes are predrilled into the frame of the vent cover and matching finish, flush mount screws are provided with each order.

Wall Vent Cover Brushed Chrome With Screws on White Wall

Notes:

  • Ceiling vent covers over 72 inches will be divided into equal lengths with mitered corner ends creating a continuous appearance, connected by steel splice plates.

  • Two splice plates are required per joint.
